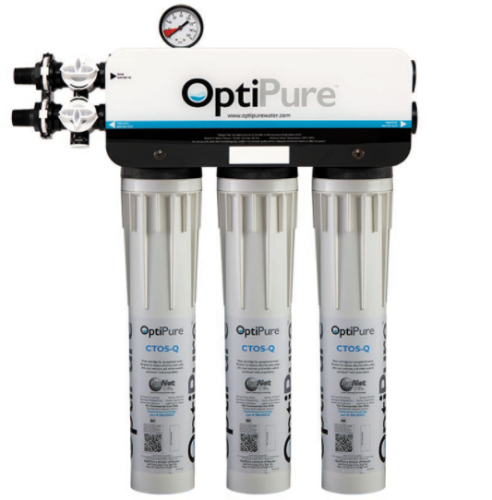

The Pentair QTI-3 is a triple-cartridge water treatment system with three 15″ Qwik-Twist cartridges, parallel-plumbed, that reduces sediment down to 0.5-microns, and reduces chlorine, taste & odor at a flow rate of 6.75 gpm for 67,500-gallons. The system includes IsoNet®, OptiPure’s patented scale inhibiting technology, which delivers consistent protection against the precipitation and accumulation of scale and provides a protective barrier to help guard against corrosion.

System Benefits

· IsoNet® - The patented scale inhibiting technology helps protect equipment against scale and corrosion for the rated capacity of the system.

· Reduces maintenance frequency and cost, and extends equipment life.

· Gradient-density sediment filtration protects against dirt, rust and other debris.

· High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine.

· New manifold design provides fewer possible leak points.

· Sturdy, powder-coated mounting bracket and multi-function valve simplify installation.

· Multi-function valve provides:

           - Shutoff valve for quick and simple filter replacements

           - System bypass valve for easy system maintenance

           - Flush port to flush cartridges after installation

· Built-in pressure gauge allows visual monitoring of when filters need to be changed.

· Utilizes Qwik-Twist cartridges that make changing filters quick, easy and sanitary.

· NSF certified under standard 42.

Application

ICE - Cubers up to 2,400 lbs. and Flakers up to 4,000 lbs.

Installation Tips

· Feed-water connection to system should be COLD only.

· Do not exceed system specifications for temperature and pressure.

· Allow 3″ clearance below system for filter cartridge removal and cartridge replacement.

· Connect filtered water line to ice connections only. Do not use for condenser water.

· Detailed installation, operation and maintenance manual included with each system.

· No activation procedure or flushing required for system to perform as specified.

Specifications

System:

Dimensions

23 ¼” x 18 ¼” x 4 ¾”

Connection - Inlet & Outlet

½ ″ MNPT

Operating Pressure Range

10 - 125 psi (0.7 - 8.6 bar)

Inlet Water Temperature Range

35° - 100°F (2° - 38°C)

Shipping Weight

13 lbs.

Performance:

Chlorine, Taste and Odor Reduction Capacity

67,500 gals. (255,488 L)

Service Flow Rate

6.7 gpm (25.55 lpm)

Sediment Reduction

0.5 microns (nominal)

Scale & Corrosion Inhibitor

210 grams

Replacement Cartridges

Model

Description

SKU Number

QTY

CTOS-Q

Post- Filter

1298

3

Water Cartridge replacement tips

· It is recommended that pre/post-filters and mineral addition cartridges are changed every 6 months, when capacity is reached or when feedwater pressure or flow becomes inadequate.

· Membrane life varies depending on feedwater conditions and pre-filter maintenance. It is 12-18 months under typical conditions, but it can be as long as 3-5 years.

· This product is for commercial use only and must be installed and maintained according to manufacturer’s guidelines.

· Do not use on water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

General

Certification: NSF
